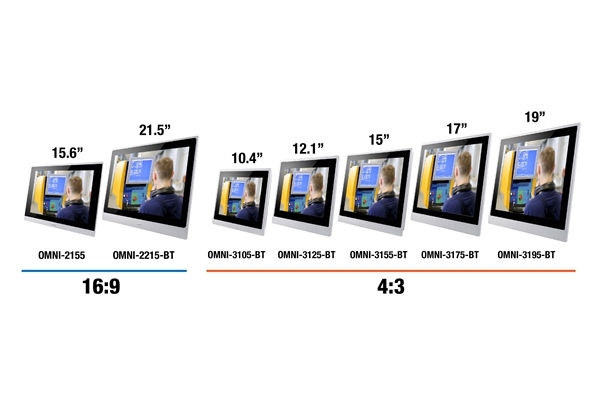

OMNI Series Modules- Panels

OMNI Series Modules- Panels

PART NUMBER	OMNI-3125 PANEL KIT	OMNI-3155 PANEL KIT	OMNI-3175 PANEL KIT	OMNI-3195 PANEL KIT
PRODUCT DESCRIPTION	OMNI 12.1” Panel Kit for OMNI-3125* HMI Panel PC	OMNI 15” Panel Kit for OMNI-3155* Expandable HMI Panel PC	OMNI 17” Panel Kit for OMNI-3175* Expandable HMI Panel PC	OMNI 19” Panel Kit for OMNI-3195* Expandable HMI Panel PC
FEATURE	■ 12.1” XGA (1024 x 768) TFT LCD Display	■ 15” XGA (1024 x 768) TFT LCD Display	■ 17” SXGA (1280 x 1024) TFT LCD Display	■ 19” SXGA (1280 x 1024) TFT LCD Display
	■ P-CAP or Resistive Touch Support	■ P-CAP or Resistive Touch Support	■ P-CAP or Resistive Touch Support	■ P-CAP or Resistive Touch Support
	■ Aluminum Design	■ Aluminum Design	■ Aluminum Design	■ Aluminum Design
	■ IP65 Compliant Front Bezel	■ IP65 Compliant Front Bezel	■ IP65 Compliant Front Bezel	■ IP65 Compliant Front Bezel
	■ Support Intel® J1900/N2807 Processor with OMNI-BT CPU BOX Kit	■ Support Intel® J1900/N2807 Processor with OMNI-BT CPU BOX Kit	■ Support Easily Expandable I/O Modules with OMNI-BT CPU BOX	■ Support Easily Expandable I/O Modules with OMNI-BT CPU BOX
			■ Support Intel® J1900/N2807 Processor with OMNI-BT CPU BOX Kit	■ Support Intel® J1900/N2807 Processor with OMNI-BT CPU BOX Kit
PROCESSOR	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	Intel® J1900/N2807 Processor	Intel® J1900/N2807 Processor	Intel® J1900/N2807 Processor	Intel® J1900/N2807 Processor
SYSTEM MEMORY	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	DDR3L 1333MHz SODIMM x 1, up to 8GB(J1900)/4GB(N2807)	DDR3L 1333MHz SODIMM x 1, up to 8GB(J1900)/4GB(N2807)	DDR3L 1333MHz SODIMM x 1, up to 8GB(J1900)/4GB(N2807)	DDR3L 1333MHz SODIMM x 1, up to 8GB(J1900)/4GB(N2807)
LCD/CRT CONTROLLER	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	Integrated in processor	Integrated in processor	Integrated in processor	Integrated in processor
ETHERNET	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	Intel® I211, 10/100/1000Base-TX x 2	Intel® I211, 10/100/1000Base-TX x 2	Intel® I211, 10/100/1000Base-TX x 2	Intel® I211, 10/100/1000Base-TX x 2
I/O PORT	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	USB 2.0 type A x 3	USB 2.0 type A x 3	USB 2.0 type A x 3	USB 2.0 type A x 3
	USB 3.0 type A x 1	USB 3.0 type A x 1	USB 3.0 type A x 1	USB 3.0 type A x 1
	SMA Antenna hole x 1	SMA Antenna hole x 1	SMA Antenna hole x 1	SMA Antenna hole x 1
	HDMI x 1	HDMI x 1	HDMI x 1	HDMI x 1
	CFast x 1	CFast x 1	CFast x 1	CFast x 1
	DB-9 Type RS-232/422/485 x 1	DB-9 Type RS-232/422/485 x 1	DB-9 Type RS-232/422/485 x 1	DB-9 Type RS-232/422/485 x 1
	RJ-45 x 2 for 10/100/1000 base-T	RJ-45 x 2 for 10/100/1000 base-T	RJ-45 x 2 for 10/100/1000 base-T	RJ-45 x 2 for 10/100/1000 base-T
	DB-15 x 1 for VGA	DB-15 x 1 for VGA	DB-15 x 1 for VGA	DB-15 x 1 for VGA
	3-pin terminal block x1 for 9~30 Vdc power input	3-pin terminal block x1 for 9~30 Vdc power input	3-pin terminal block x1 for 9~30 Vdc power input	3-pin terminal block x1 for 9~30 Vdc power input
	LED Power on/off switch x1	LED Power on/off switch x1	LED Power on/off switch x1	LED Power on/off switch x1
STORAGE DISK DRIVE	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	CFast™ x 1, 2.5" SATA HDD bay x 1	CFast™ x 1, 2.5" SATA HDD bay x 1	CFast™ x 1, 2.5" SATA HDD bay x 1	CFast™ x 1, 2.5" SATA HDD bay x 1
EXPANSION SLOT	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	Mini card x 2 (Testing Compalibility Only)	Mini card x 2 (Testing Compalibility Only)	Mini card x 2 (Testing Compalibility Only)	Mini card x 2 (Testing Compalibility Only)
	SIM card x 2	SIM card x 2	SIM card x 2	SIM card x 2
	PCIE X 1 connector (AAEON PIN Define)	PCIE X 1 connector (AAEON PIN Define)	PCIE X 1 connector (AAEON PIN Define)	PCIE X 1 connector (AAEON PIN Define)
OS SUPPORT	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	Window® 7	Window® 7	Window® 7	Window® 7
	Window® 8	Window® 8	Window® 8	Window® 8
	Window® 10	Window® 10	Window® 10	Window® 10
	Linux Kernal 2.6.x or above	Linux Kernal 2.6.x or above	Linux Kernal 2.6.x or above	Linux Kernal 2.6.x or above
CONSTRUCTION	Aluminum design (IP65 Front Frame)	Aluminum design (IP65 Front Frame)	Aluminum design (IP65 Front Frame)	Aluminum design (IP65 Front Frame)
MOUNTING	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	Wall /VESA Mount/Desktop (Optional panel mount kits)	Wall /VESA Mount/Desktop (Optional panel mount kits)	Wall /VESA Mount/Desktop (Optional panel mount kits)	Wall /VESA Mount/Desktop (Optional panel mount kits)
DIMENSION	329*288*25 mm	369*314*27 mm	400*370*28 mm	460.8*410*31 mm
GROSS WEIGHT	3.5 kg	4.85 kg	5.7 kg	7.3 kg
OPERATING TEMPERATURE	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	-10°C ~ 55°C (J1900)	-10°C ~ 55°C (J1900)	-10°C ~ 55°C (J1900)	-10°C ~ 55°C (J1900)
	-10°C ~ 60°C (N2807)	-10°C ~ 60°C (N2807)	-10°C ~ 60°C (N2807)	-10°C ~ 60°C (N2807)
	with 0.5 m/s airflow ( CF & HDD )	with 0.5 m/s airflow ( CF & HDD )	with 0.5 m/s airflow ( CF & HDD )	with 0.5 m/s airflow ( CF & HDD )
STORAGE TEMPERATURE	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	-4°F ~ 158°F (-20°C ~ 70°C)	-4°F ~ 158°F (-20°C ~ 70°C)	-4°F ~ 158°F (-20°C ~ 70°C)	-4°F ~ 158°F (-20°C ~ 70°C)
STORAGE HUMIDITY	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	90% @40°C; non-condensing	90% @40°C; non-condensing	90% @40°C; non-condensing	90% @40°C; non-condensing
ANTI-VIBRATION	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	1 Grms / 5~ 500Hz / operation – with HDD	1 Grms / 5~ 500Hz / operation – with HDD	1 Grms / 5~ 500Hz / operation – with HDD	1 Grms / 5~ 500Hz / operation – with HDD
CERTIFICATION	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	CE/FCC class A	CE/FCC class A	CE/FCC class A	CE/FCC class A
DC INPUT	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:	Supported by OMNI-BT CPU BOX Kit:
	DC 9(min) ~ 30 (max) V w/3-pin terminal block, ATX Power function	DC 9(min) ~ 30 (max) V w/3-pin terminal block, ATX Power function	DC 9(min) ~ 30 (max) V w/3-pin terminal block, ATX Power function	DC 9(min) ~ 30 (max) V w/3-pin terminal block, ATX Power function
DISPLAY TYPE	12.1" TFT-LCD, LED	15" TFT-LCD, LED	17" TFT-LCD, LED	19" TFT-LCD, LED
MAX. RESOLUTION	1024(H)x768(V)	1024(H)x768(V)	1280(H)x1024(V)	1280(H)x1024(V)
MAX. COLORS	16.2M colors	16.7M (8 bit/color)	16.7M colors (RGB 6-bits + Hi-FRC data)	16.7M colors
LUMINANCE	500 cd/m²	450 cd/m²	350 cd/m²	350 cd/m²
VIEWING ANGLE	160 (H), 160 (V)	160 (H), 140 (V)	170 (H), 160 (V)	170 (H), 160 (V)
BACK LIGHT	LED	LED	LED	LED
BACK LIGHT MTBF (HOURS)	NA	NA	NA	NA
TYPE	P-CAP/ 5-wire resistive	P-CAP/ 5-wire resistive	P-CAP/ 5-wire resistive	P-CAP/ 5-wire resistive
LIGHT TRANSMISSION	P-CAP (90% ± 3%)	P-CAP (≥85%)	P-CAP (≥85%)	P-CAP (≥85%)
	5-wire Resistive (80% ± 3%)	5-wire Resistive (80% ± 2%)	5-wire Resistive (80% ± 5%)	5-wire Resistive (80% ± 5%)
