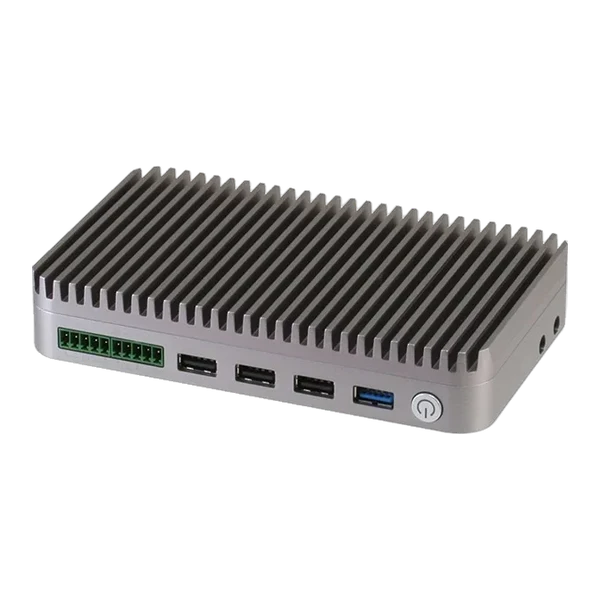

Máy tính công nghiệp siêu mỏng Aaeon BOXER 6403WT

• 4 Digital Input & 2 Digital Output Support Dry Contact & Wet Contact

• HDMI Output

• Seamless Communication for WiFi, 4G, GPS, Bluetooth, and ZigBee

• Aluminum Extrusion

• Operating in -30°C ~ 70°C Environment

Specifications [BOXER-6403WT]

SYSTEM
CPU	Intel® Celeron™ J1900, 2.0 GHz Intel® Celeron™ N2807, 1.58 GHz
CHIPSET	Intel® System on Chip
SYSTEM MEMORY	DDR3L 1333 SODIMM slot x 1, up to 8 GB (J1900) or 4 GB (N2807)
DISPLAY INTERFACE	HDMI
STORAGE DEVICE	mSATA
ETHERNET	Intel® I211, 10/100/1000Base-TX x 2
I/O	RS-232/422/485 x 2 USB 2.0 x 3 USB 3.0 x 1 HDMI x 1 LAN x 2 Digital input x 4 Digital output x 2 Antenna holes x 2 Power button Power input
EXPANSION	Half Mini-Card x 1 (mSATA only) Full Mini-Card x 1 with SIM slot
INDICATOR	Power LED on power button
OS SUPPORT	Windows® 10, Windows® 8.1, Windows® 7, Windows® Embedded 8, Windows® Embedded 7, Linux Fedora
POWER SUPPLY
POWER REQUIREMENT	12V with lockable DC jack
MECHANICAL
MOUNTING	VESA (Mounting kit is optional) DIN rail (Mounting kit is optional)
DIMENSIONS (W X H X D)	6.22" x 3.74" x 1.41" (158mm x 95mm x 29mm)
GROSS WEIGHT	2.98 lb (1.35kg)
NET WEIGHT	—
ENVIRONMENTAL
OPERATING TEMPERATURE	-30°C ~ 70°C with wide temperature mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
STORAGE TEMPERATURE	-30°C ~ 80°C
STORAGE HUMIDITY	95% @ 40°C, non-condensing
ANTI-VIBRATION	3G rms/ 5 ~ 500Hz/ operation –mSATA
CERTIFICATION	CE/FCC class A

Ordering Information [BOXER-6403WT]

PART NUMBER	BOXER-6403WT-A1-1010	BOXER-6403WT-A2-1010
CPU	Intel® N2807	Intel® J1900
RAM	Up to 4GB	Up to 8GB
LAN	2	2
USB3.0	1	1
USB2.0	3	3
RS-232/422/485	2	2
STORAGE	Half-size mSATA bay x 1	Half-size mSATA bay x 1
DISPLAY	HDMI	HDMI
EXPANSION	Full size Mini-card slot x 1	Full size Mini-card slot x 1
MOUNTING	Din Rail/VESA 75	Din Rail/VESA 75
POWER	12V DC in	12V DC in
OPERATING TEMP.	-30°C ~ 70°C (-22°F ~ 158°F) with 0.5m/s airflow	-30°C ~ 70°C (-22°F ~ 158°F) with 0.5m/s airflow

Packing List

Chính sách bán hàng

• Bảo hành chính hãng theo từng dòng máy, thời hạn ghi rõ trên báo giá

• Báo giá trong 2 giờ làm việc

• IPC247 xác nhận tình trạng hàng khi báo giá

• Cho mượn máy chạy thử theo thoả thuận từng dự án

Máy tính công nghiệp siêu mỏng AAEON BOXER-6403WT

Downloads [BOXER-6403WT]

• Datasheet | Manual
