Máy tính công nghiệp Panel PC ACP 5182 ( 18.5 inch)

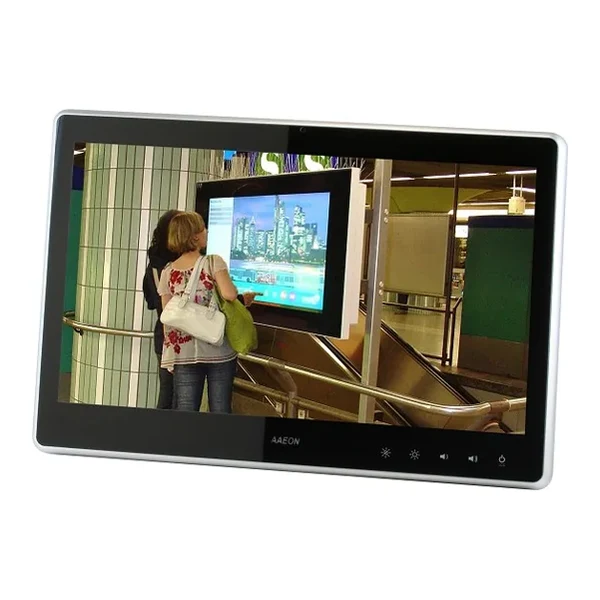

The ACP-5182 18.5” Fanless Multi-Touch Window Computer is powered by the economical and robust Intel Dual Core Atom D510 Processor with the Intel® ICH8M Chipset. This model is quiet and can be served in applications that require no ventilation or sound, such as hospitals and wafer factories. Moreover, it has one DDR2 SODIMM memory (up to 2 GB). The LCD/CRT Controller is integrated in the Processor, making the Intel® Atom™ D510 multi-functional. For the Storage Disk Drive, the ACP-5182 has one 2.5" SATA Hard Disk Drive and one CompactFlash™ Slot (Internal). The ACP-5182 also offers flexible I/O ports, including one RS-232, one RS-232/422/485, six USB 2.0, one Line-out, and one VGA connector. For even more expansion, the ACP-5182 is fitted with two Mini Cards.

The ACP-5182 is equipped with flexible expansions, such as MSR/ RFID/ Scanner/ Smart Card Reader/ and even a Skype Phone that can be applied to various applications to meet versatile demands. In addition, it supports G-sensor screen rotation. As AAEON is one of the first companies to incorporate Projected Capacitive Multi-Touch screen into Digital Signage and POS/KIOSK applications, the ACP-5182 has been widely known as a novelty product in these vertical markets. Key proponents of the ACP-5182 are its Multi-Touch Window Design, Anti-scratch 7H Surface, IP-65 Front Bezel and IPx1 Back Chassis.. Customers can rotate the screen based on different applications.

Applications

• Multi-touch

• Infotainment

• Retailer

Features

Ordering Information [ACP-5182]

• HDD Screws

• VESA Screws

• Power Adapter

• Product DVD

• ACP-5182

Optional Accessories
