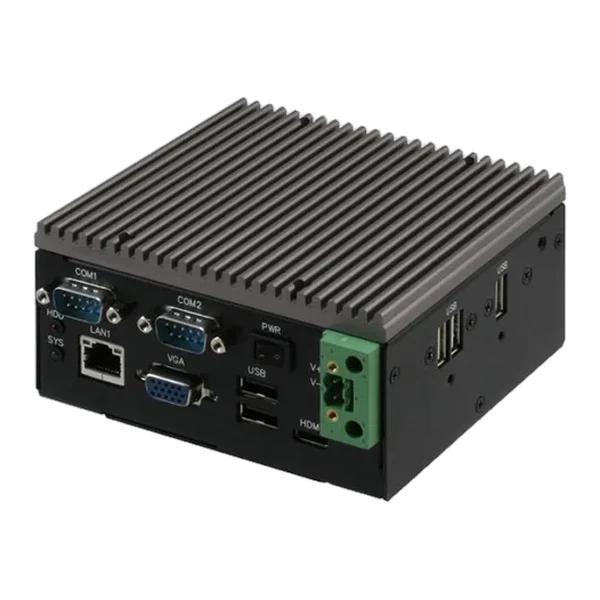

Máy tính công nghiệp không quạt Aaeon TKS-P20-CV01

• Overview

  Powered by Intel® Atom™ processors, the TKS-P20-CV01 is a standalone high performance controller designed for extended operation with high reliability. It can be used in ambient temperatures ranging from 0°C to 55°C and is designed to be an energy saver, making it an ideal device for any advertising purposes

  Applications

  • POS
  • KIOSK
  • Entry Digital Signage
  • Transportation
  • Monitoring system

  Features

  • Intel® Atom™ N2600 Processor 1.6GHz
  • SODIMM DDR3 800 MHz Memory up to 2 GB
  • DIN RAIL and Fanless System
  • Support Mini HDMI and VGA Dual Display
  • Gigabit Ethernet LAN x 1
  • USB2.0 x 5, COM x 2, 4-bits Digital I/O
  • mSATA x 1
  • DC IN +12V or Wide Range DC Input

• Specifications [TKS-P20-CV01]

  SYSTEM
  CPU	Intel® Atom™ N2600, 1.6 GHz
  CHIPSET	Intel® NM10
  SYSTEM MEMORY	DDR3 800 SODIMM x 1, up to 2 GB
  DISPLAY INTERFACE	VGA, HDMI
  STORAGE DEVICE	mSATA, HDD/SSD (Optional)
  ETHERNET	Realtek RTL-8111E, 10/100/1000Base-TX x 1
  I/O	RS-232/422/485 x 1 RS-232 x 1 USB 2.0 x 5 VGA x 1 HDMI x 1 (Type C) LAN x 1 DIO x 4 Line-out x 1 Mic-in x 1 Antenna holes x 2 Power switch Power input
  EXPANSION	Half-size Mini-Card x 1 (for mSATA)
  INDICATOR	Power LED HDD active LED
  OS SUPPORT	Windows® 7, Windows® XP, Windows® XP Embedded, Linux Fedora
  POWER SUPPLY
  POWER REQUIREMENT	9 - 30V with 2-pin terminal block 12V with 2-pin terminal block
  MECHANICAL
  MOUNTING	Wallmount DIN Rail (Mounting kit is optional)
  DIMENSIONS (W X H X D)	4.7" x 2.3" x 4.3" (120mm x 59.5mm x 110mm)
  GROSS WEIGHT	2.2 lb (1 kg)
  NET WEIGHT	1.8 lb (820 g)
  ENVIRONMENTAL
  OPERATING TEMPERATURE	0°C ~ 55°C W.T. HDD (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
  STORAGE TEMPERATURE	-40°C ~ 80°C
  STORAGE HUMIDITY	90% @ 40°C, non-condensing
  ANTI-VIBRATION	2 Grms/ 5 ~ 500Hz/ operation –mSATA
  CERTIFICATION	CE/FCC class A

  Ordering Information [TKS-P20-CV01]

  PART NUMBER	TKS-P20-CV01-001-DX	TKS-P20-CV01-002-DX
  CPU	Intel® Atom™ N2600	Intel® Atom™ N2600
  RAM	DDR3 SODIMM	DDR3 SODIMM
  COOLER	Fanless	Fanless
  STORAGE	mSATA	mSATA
  DISPLAY COMBINATION	Mini HDMI, VGA	Mini HDMI, VGA
  LAN	1	1
  USB	5	5
  RS-232	1	1
  RS-232/422/485	1	1
  DIO	4 bits	4 bits
  EXPANSION SLOT	mSATA	mSATA
  POWER	12V DC ATX	7-30V DC ATX

  Packing List

  • Product DVD

  • TKS-P20-CV01

  Optional Accessories

  1757904002	40W AC Adapter
  1702031802	Power Cord (US Type)
  1702031803	Power Cord (European Type)
  170203180E	Power Cord (Japanese Type)
  9741681003	DIN Rail Mounting Kit
  9761P20000	Wallmount Kit
