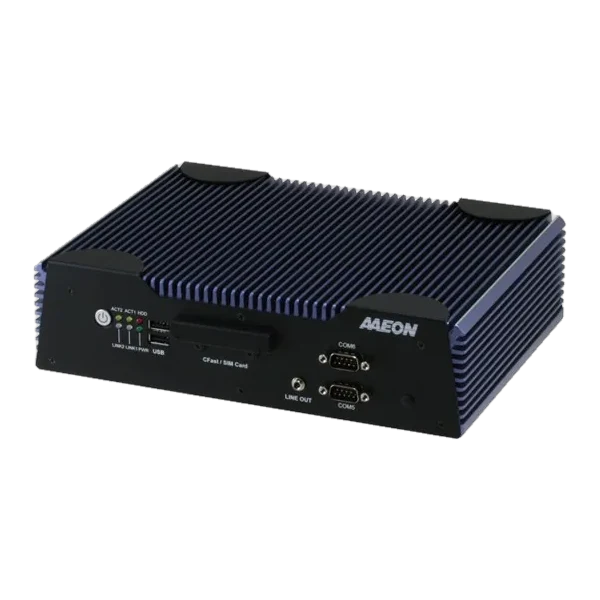

Máy tính công nghiệp không quạt Aaeon BOXER 6652

• Overview

  The BOXER-6652 is made for the factory floors with its array of electrical protection, which includes over-voltage, low-voltage, surge, reverse polarity and short circuit protection, and inclusion of isolated COMs ports. Its operating temperature ranges from -20°C to 60°C, and adopts a cable-free design to enhance reliability.

  Features

  • Cable-less Design
  • Intel® Core™ i5-4402E (2.7 GHz)
  • Mini-Card Slot x 2 (USB & PCIe Signal)
  • Isolated RS-232/422/485 x 2

• Specifications [BOXER-6652]

  SYSTEM
  CPU	Intel® Core™ i5-4402E, 2.7 GHz
  CHIPSET	Intel® QM87
  SYSTEM MEMORY	DDR3L 1333/1600 SODIMM x 1, up to 8 GB
  DISPLAY INTERFACE	VGA, HDMI, DVI-D
  STORAGE DEVICE	CFast™, HDD/SSD
  ETHERNET	Intel® I211, 10/100/1000Base-TX x 1 Intel® I217LM, 10/100/1000Base-TX x 1
  I/O	Isolated RS-232/422/485 x 2 RS-232 x 4 USB 2.0 x 4 USB 3.0 x 2 VGA x 1 HDMI x 1 DVI x 1 Line-out x 1 LAN x 2 CFast slot x 1 Antenna holes x 2 Power switch Power input
  EXPANSION	Full-size Mini-Card x 1 Half-size Mini-Card x 1
  INDICATOR	Power LED HDD active LED LAN LED
  OS SUPPORT	Windows® 7, Windows® 8/8.1, Windows® 10, Linux Fedora
  POWER SUPPLY
  POWER REQUIREMENT	9 - 30V with 3-pin terminal block
  MECHANICAL
  MOUNTING	Wallmount
  DIMENSIONS (W X H X D)	10.4" x 2.74" x 7.62" (264.16mm x 69.62mm x 193.5mm)
  GROSS WEIGHT	12.1 lb (5.5 kg)
  NET WEIGHT	—
  ENVIRONMENTAL
  OPERATING TEMPERATURE	-20°C ~ 60°C W.T. HDD (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
  STORAGE TEMPERATURE	-20°C ~ 70°C
  STORAGE HUMIDITY	95% @ 40°C, non-condensing
  ANTI-VIBRATION	5 Grms/ 5 ~ 500Hz/ operation –mSATA / SSD 1 Grms/ 5~ 500Hz/ operation – HDD
  CERTIFICATION	CE/FCC class A

  Ordering Information [BOXER-6652]

  PART NUMBER	BOXER-6652-A1-1010
  CPU	i5-4402E
  RAM	—
  LAN	2
  USB 3.0	2
  USB 2.0	4
  RS-232	4
  RS-232/422/485 WITH ISOLATION	2
  AUDIO	Line-out x 1
  STORAGE	CFast slot x 1 2.5" HDD bay x 1
  DISPLAY	DVI-D x 1, VGA x 1, HDMI x 1
  EXPANSION	Full-size Mini-Card x 1 Half-size Mini-Card x 1
  MOUNTING	Wallmount Desktop
  POWER	DC 9 ~30V
  TEMP.	-20°C ~ 60°C according to IEC60068-2, 0.5m/s air flow

  Packing List

  • Wallmount Bracket

  • Screw Package

  • RAM Thermal Pad

  • Phoenix Power Connector

  • Product CD

  • BOXER-6652

  Optional Accessories

  1255900841	Power adapter, DC12V,7A,84W,3p phoenix
  ‧ 1702031802	Power Cord (US Type)
  ‧ 1702031803	Power Cord (European Type)
  ‧ 170203180E	Power Cord (Japanese Type)
