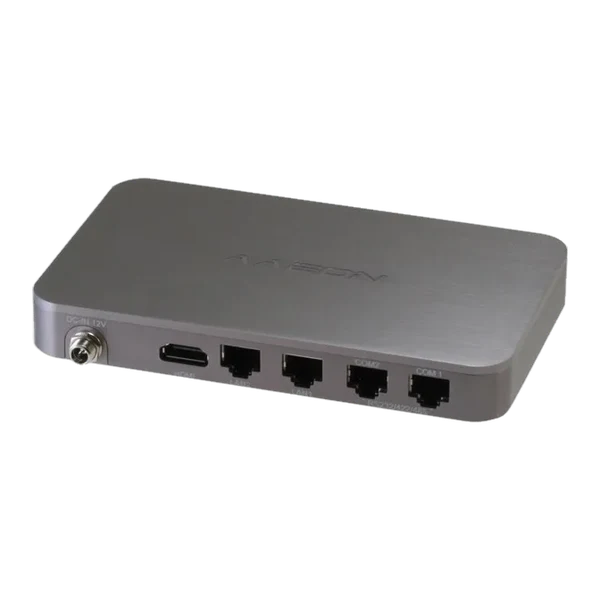

Máy tính công nghiệp không quạt Aaeon BOXER 6403

AAEON introduces the slimmest product in the BOXER series, the BOXER-6403, which utilizes the Intel® Celeron®/AtomTM processor: this boxer PC expands its graphics performance greatly with Intel® Celeron®/Atom™ SoC processors. With this tiny form factor, customers can fit it almost anywhere, and it provides quite a lot of I/O ports for basic applications. BOXER-6403 adopts a reliable fanless design for most rugged environment. It also provides wireless communication features for users wishing to build up a network connection at any locations. The BOXER-6403 is a standalone high performance PC designed for extended operation and with high reliability.

Features

Specifications [BOXER-6403]

SYSTEM
CPU	Intel® Celeron™ J1900, 2.0 GHz Intel® Celeron® N2930, 1.83 GHz Intel® Celeron™ N2807, 1.58 GHz Intel® Atom™ E3825, 1.33 GHz
CHIPSET	Intel® System on Chip
SYSTEM MEMORY	DDR3L 1333 SODIMM slot x 1, up to 8 GB (J1900 / N2930 / E3825) or 4 GB (N2807)
DISPLAY INTERFACE	HDMI
STORAGE DEVICE	mSATA
ETHERNET	Intel® I211, 10/100/1000Base-TX x 2
I/O	RS-232/422/485 x 2 USB 2.0 x 3 USB 3.0 x 1 HDMI x 1 LAN x 2 Digital input x 4 Digital output x 2 Antenna holes x 2 Power button Power input
EXPANSION	Half Mini-Card x 1 (mSATA only) Full Mini-Card x 1 with SIM slot
INDICATOR	Power LED on power button
OS SUPPORT	Windows® 10, Windows® 8.1, Windows® 7, Windows® Embedded 8, Windows® Embedded 7, Linux Fedora
POWER SUPPLY
POWER REQUIREMENT	12V with lockable DC jack
MECHANICAL
MOUNTING	VESA (Mounting kit is optional) DIN rail (Mounting kit is optional)
DIMENSIONS (W X H X D)	6.22" x 3.74" x 0.79" (158mm x 95mm x 20mm)
GROSS WEIGHT	2.56 lb (1.16kg)
NET WEIGHT	—
ENVIRONMENTAL
OPERATING TEMPERATURE	-30°C ~ 60°C (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
STORAGE TEMPERATURE	-30°C ~ 80°C
STORAGE HUMIDITY	95% @ 40°C, non-condensing
ANTI-VIBRATION	3G rms/ 5 ~ 500Hz/ operation –mSATA
CERTIFICATION	CE/FCC class A

Ordering Information [BOXER-6403]

PART NUMBER	BOXER-6403-A00-1010	BOXER-6403-A01-1010	BOXER-6403-A02-1010	BOXER-6403-A03-1010
CPU	Intel® N2807	Intel® N2930	Intel® E3825	Intel® J1900
RAM	Up to 4GB	Up to 8GB	Up to 4GB	Up to 8GB
LAN	2	2	2	2
USB 3.0	1	1	1	1
USB 2.0	3	3	3	3
RS-232/422/485	2	2	2	2
STORAGE	mSATA bay x 1	mSATA bay x 1	mSATA bay x 1	mSATA bay x 1
DISPLAY	HDMI	HDMI	HDMI	HDMI
EXPANSION	WiFi b/g/n (optional)	WiFi b/g/n (optional)	WiFi b/g/n (optional)	WiFi b/g/n (optional)
MOUNTING	Din Rail/VESA 75	Din Rail/VESA 75	Din Rail/VESA 75	Din Rail/VESA 75
POWER	12V DC in	12V DC in	12V DC in	12V DC in
OPERATION TEMP.	-30°C ~ 60°C with 0.5 m/s airflow	-30°C ~ 60°C with 0.5 m/s airflow	-30°C ~ 60°C with 0.5 m/s airflow	-30°C ~ 60°C with 0.5 m/s airflow

Packing List

Optional Accessories

1702031802	Power Cord (US type)
1702031803	Power Cord (European Type)
170203180E	Power Cord (Japanese Type)
9751640300	4G Module & Antenna (for Europe)
9751640301	4G Module & Antenna (for USA)
9751640303	WiFi/BT Module & Antenna
125530060A	Power Adapter
M046403000	Anti-Heat Kit
9741640300	VESA Mount Kit
9741640301	DIN Rail Mount Kit
