Máy tính công nghiệp không quạt AAEON AEC-6637

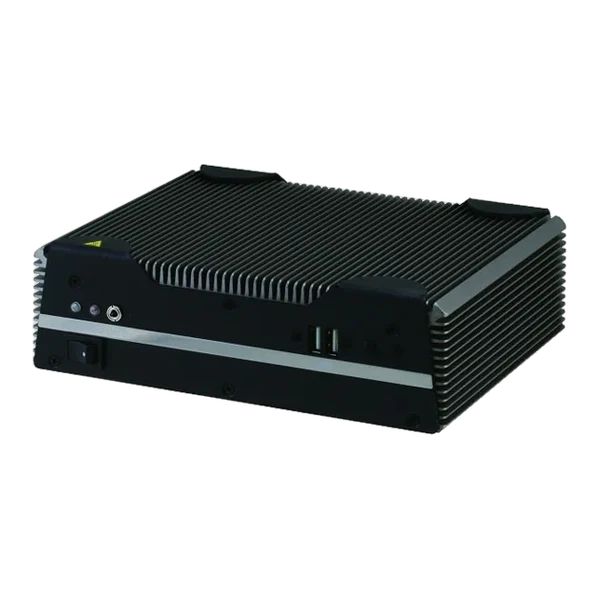

• The AEC-6637 fanless embedded computer system, powered by the 3rd Generation Intel Core i7/ i5 processor, is a compact fanless model. Also featured is the latest Tri-Gate transistors and 22nm technology, with integrated HD4000 graphics that nearly doubles the graphics performance over its predecessor, complimented by the latest Intel® QM77 chipset offering more I/O interfaces and faster connectivity. High performance and the fastest connectivity, the AEC-6637 serve performance demanding applications such as industrial automation, building automation and transportation markets which typically have space constraints.

• The AEC-6637 comes with a DDR3 1066/1333 SODIMM slot to support a maximum of 8GB of memory. Featuring superior connectivity with two 5 Gb/sec USB3.0 ports, one Full HD display via VGA, two Gigabit Ethernet, three RS-232 ports, one RS-232/422/485 port, one Line-out, the AEC-6637 provides extremely fast connections for enhanced efficiency with rich I/Os. The AEC-6637 offers a 6 Gb/sec SATAIII connector that can support a 2.5” HDD for storage and also offers a CFast slot that can support a Cfast card for storage. Optional wireless features can be added via a PCIe 3.0 mini-Card slot that supports 802.11b/g/n and Bluetooth™ 3.0. Designed with a wide voltage input range of DC 9~30V and offering four types of power protection: Over-Voltage, Low-Voltage, Short Circuit and Surge Protection, the AEC-6637 is well protected to operate in harsh environments that have unsteady power supply or variance in grounding. The passively cooled AEC-6637 embedded computer operates in -15°C ~ 50°C with wide temperature CFast™ card (with airflow)

Features
